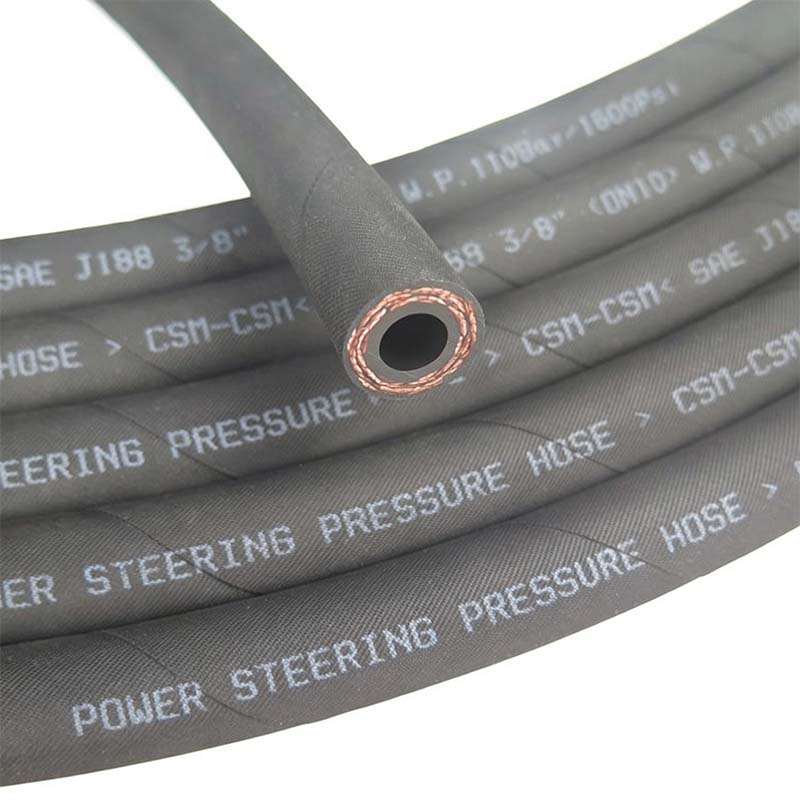

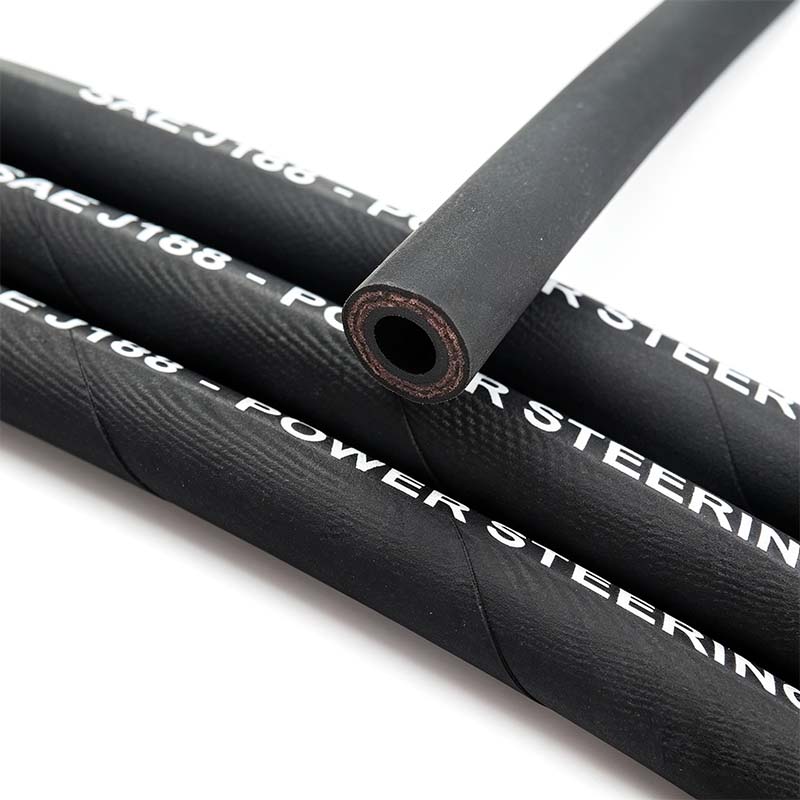

SAE J188 High-Capacity Intumescent Power Steering Hose

Application: For vehicles equipped with power steering systems, used to transmit pressure within the power steering unit.

Operating temperature: -40°C to 121°C, with a peak temperature of up to 135°C.

Standard inner diameter: 3/8”. The primary material is CSM, which offers excellent resistance to ozone, ageing, chemical corrosion, high and low temperatures, oil, abrasion, and electrical insulation.

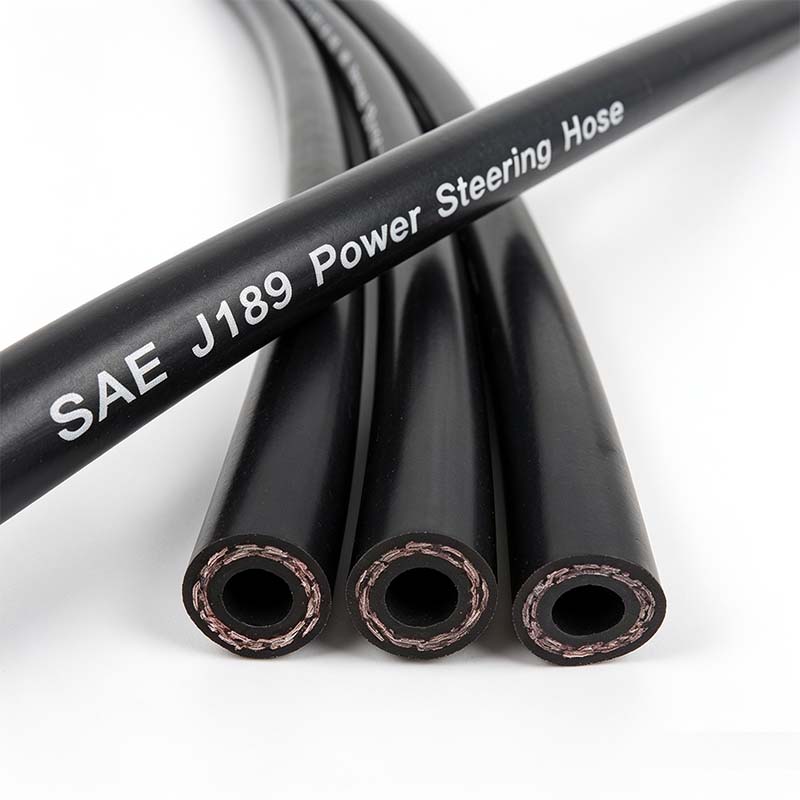

SAE J189 Low-Pressure Power Steering Return Hose

Application: For vehicles equipped with power steering systems; used to transmit pressure within the power steering unit.

Operating temperature: -40°C to 121°C, with a maximum instantaneous temperature of 135°C.

Common inner diameter: 3/8”.

Single-layer polyester filament braiding.

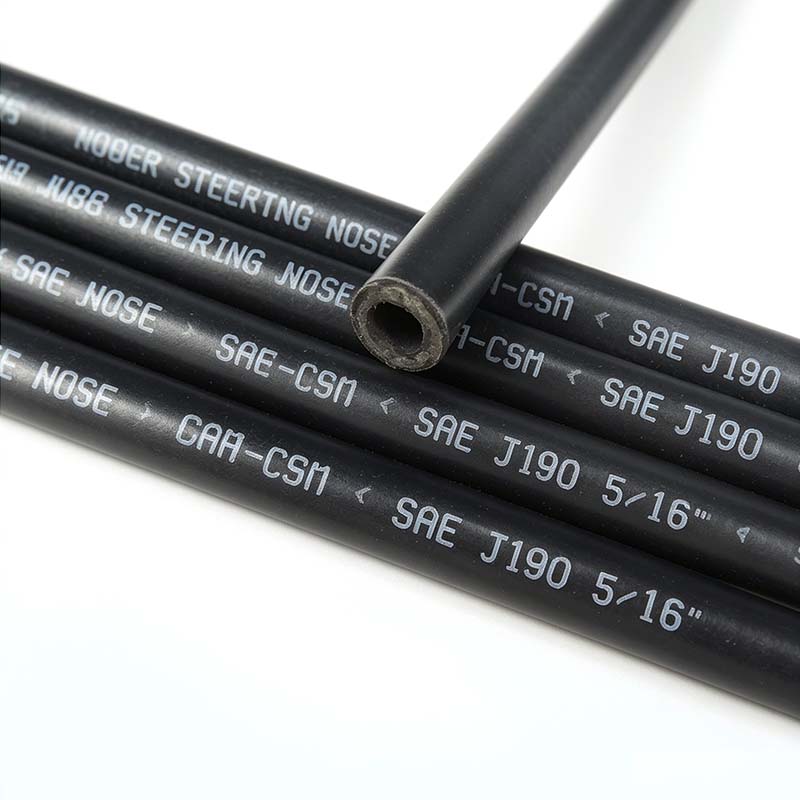

SAE J190 steel-braided power steering hose

Operating temperature: -40°C to 120°C.

Inner layer: NBR

Reinforcement: single or double layer of copper-plated steel braiding.

Outer layer: CR

Common inner diameters: 5/16”, 3/8”, 1/2”, 5/8”.

Typically used with crimp fittings.

Steel-braided high-temperature power steering hose

Operating temperature: -40°C to 150°C.

Reinforcement layer: Two layers of polyester filament braiding. The main material is ACM, which offers excellent heat resistance, ageing resistance, oil resistance, ozone resistance and UV resistance. Its mechanical and processing properties are superior to those of fluorocarbon rubber and silicone rubber. Its heat resistance, ageing resistance and oil resistance are superior to those of nitrile rubber.
